Products

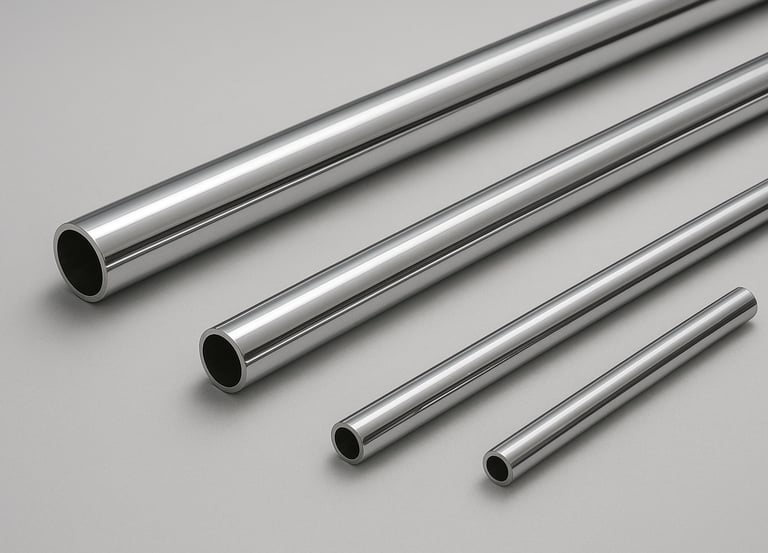

Chrome Plated Tubes

Precision-engineered tubes with superior corrosion resistance and durability.

Standard Sizes

38×50, 50×70, 57×70, 60×80, 65×80, 67×8

Chrome Thickness

20 micron

Material

Seamless (EN10305-1) or DOM (EN10305-2) steel, grade E355

Tolerances

• Outer Diameter: f8

• Inner Diameter: ±0.2 mm (smooth cold drawn finish)

Straightness

0.25 mm/meter

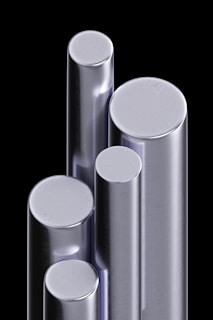

Induction Hardened Rods (IH Rods)

High-strength rods with hardened surfaces for heavy-duty applications.

Steel Grades & Hardness

• C45: 52–60 HRC

• 42CrMo4: 52–62 HRC

Induction Hardening Depth

• Ø20–40 mm → 1.5 ± 0.5 mm

• Ø40–80 mm → 2.0 ± 0.5 mm

• Ø80–100 mm → 2.5 ± 0.5 mm

Selective Hardness

Ensures machined areas are not affected

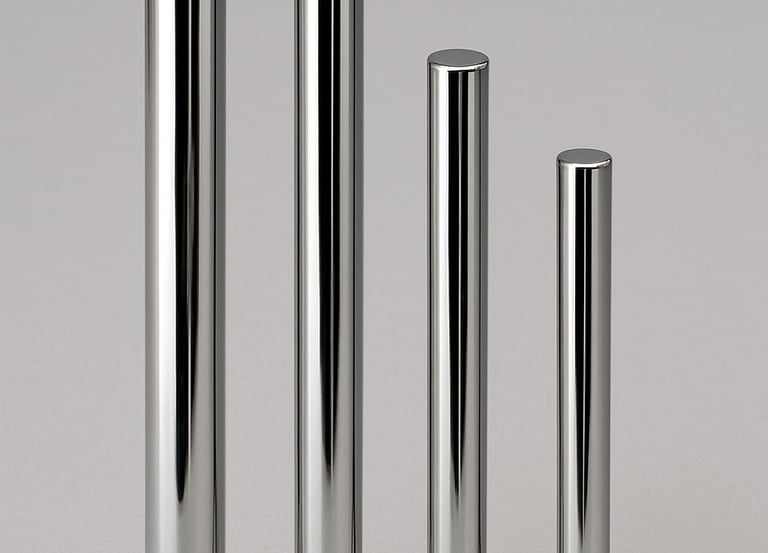

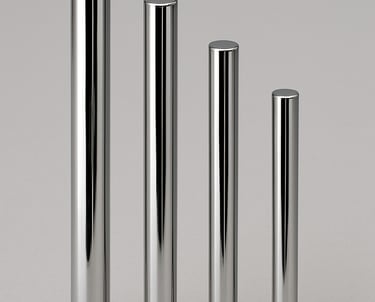

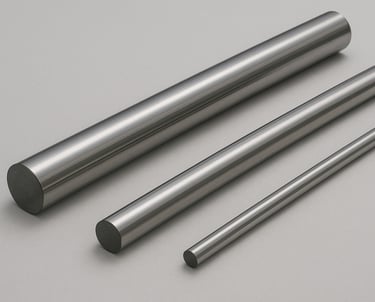

Chrome Plated Bars

Smooth, wear-resistant bars designed for hydraulic and industrial use.

Diameter Range

20 mm to 100 mm

Length

Up to 6.42 meters (custom sizes on request)

Types Available

• Normal Chrome Plated Bars

• Hardened & Tempered Chrome Plated Bars

• Induction Hardened Chrome Plated Bars

Chrome Layer

• Ø20 mm → min. 16 micron

• Ø22–100 mm → min. 20 micron

Steel Grades

CK45, 42CrMo4

Product FAQs

What materials do you use?

We use high-quality steel grades such as E355, CK45, C45, and 42CrMo4, ensuring durability, strength, and performance across all our chrome plated bars, rods, and tubes.

What sizes are available?

Our standard manufacturing range covers diameters from 20 mm to 100 mm and lengths up to 6.42 meters. Custom sizes outside this range can also be provided on request.

What is the surface finish?

All our products have an exceptionally smooth surface with:

Roughness: Ra ≤ 0.2 micron, Rt ≤ 3 micron
Straightness: better than 0.25 mm/meter
Out-of-Roundness & Lobbing: within defined tolerances

Yes. We provide chrome plated tubes with ID tolerance and smooth cold-drawn finishes, suitable for hydraulic and pneumatic applications. Honed tube solutions can be offered based on requirements.

Do you offer honed tubes?

What is your tolerance level?

Our products maintain strict tolerance standards:

Outer Diameter (OD): f8 tolerance
Inner Diameter (ID): ±0.2 mm
Chrome Layer Hardness: HRC 66–69 (HV 850–1000)
